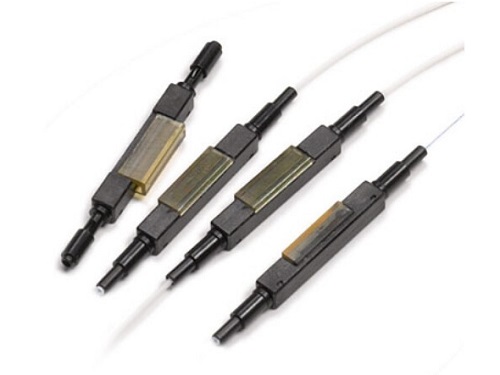

OPMS-800 Fiber Optic Mechanical Splice
|
| Content |
DescriptionBe applied to connect φ0.25--φ0.9 fiber/cable; take advantage of mature V-groove technologies, suitable for single mode and multimode; No fixture, operation time less than 1 minute; better performance than the imported products.
Technical parameter
|
Item |
Parameter |
|
Applicable for |
φ0.25 mm &φ0.90 mm fiber |
|
Optical fiber diameter |
125μm ( 652 & 657 ) |
|
Tight buffer diameter |
250μm & 900μm |
|
Applicable mode |
single & multimode |
|
Operation time |
about 10s (without fiber cut) |
|
Insert loss |
≤ 0. 10dB（1310nm & 1550nm） |
|
Return loss |
≤ -40dB |
|
Fastening strength of naked fiber |
>5 N |
|
Clamping force of fiber with tight buffer |
>8 N |
|
Using temperature |
-40～+75℃ |
|
Reusability (10 times) |
△ IL ≤ 0.2dB △ RL ≤ 5dB |
|
|
|
|
 |
|
